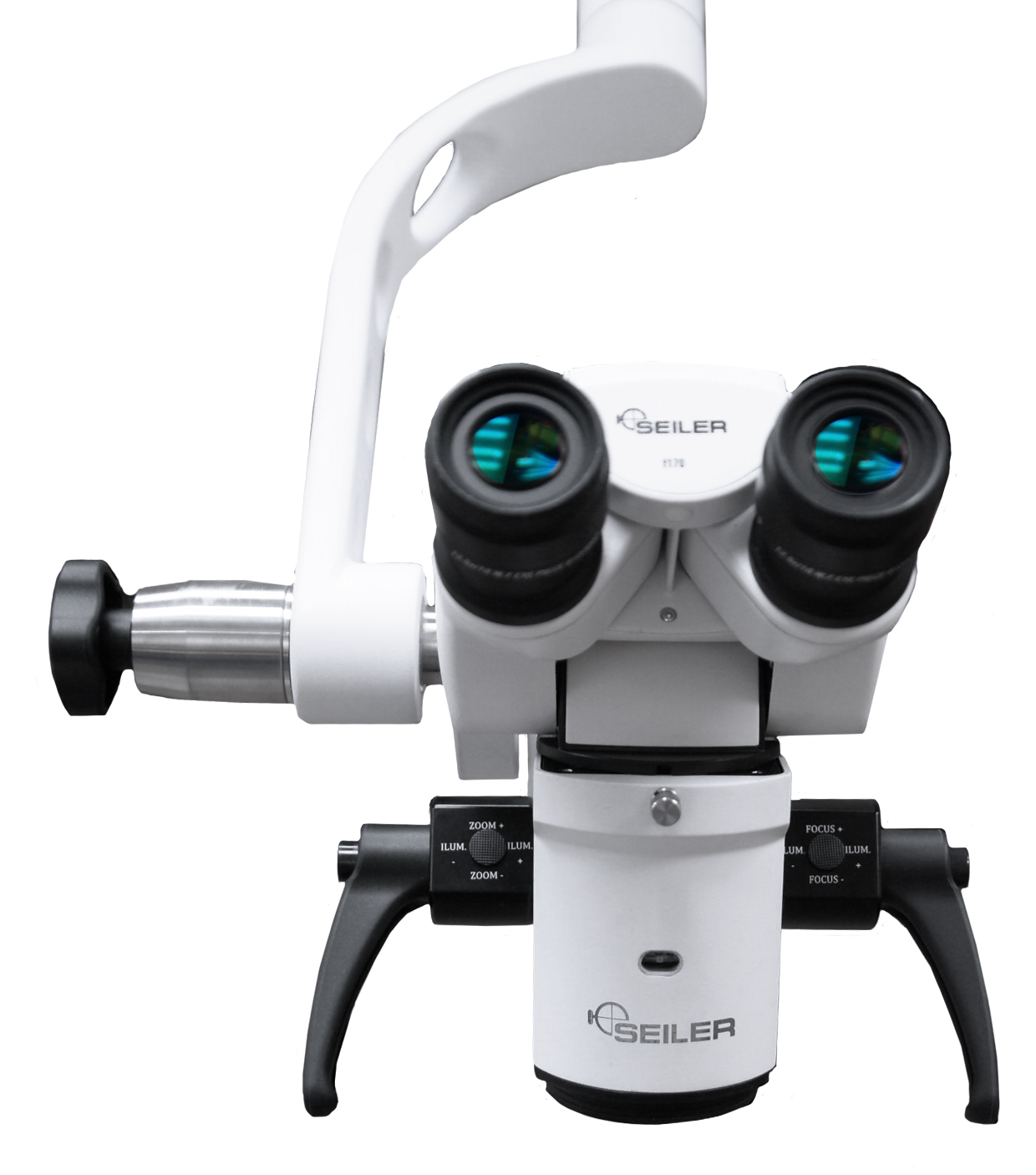

The magnification and the motorised focus system are controlled by a set of control handles or a motorized foot pedal control. This allows the operator the freedom to control the magnification level with ease. In addition to the zoom magnification, the Evolution Zoom can be equipped with an X-Y System that gives the user the ability to control the optic pod positioning easily at high magnifications.
The XY system moves the Optical situation along the X and Y axis of the Horizontal Plane, with a movement of 22.5mm to either side from the central position. Requires the Multifunction Pedal in order to be operated.
Multifunctional Foot Pedal
Controls the following functions:
- Switches the illumination on and off
- Adjusts the magnification of the Zoom system
- Motorized micro focusing
- Movement of XY system by means of the Footstick
- Illumination brightness adjusting
