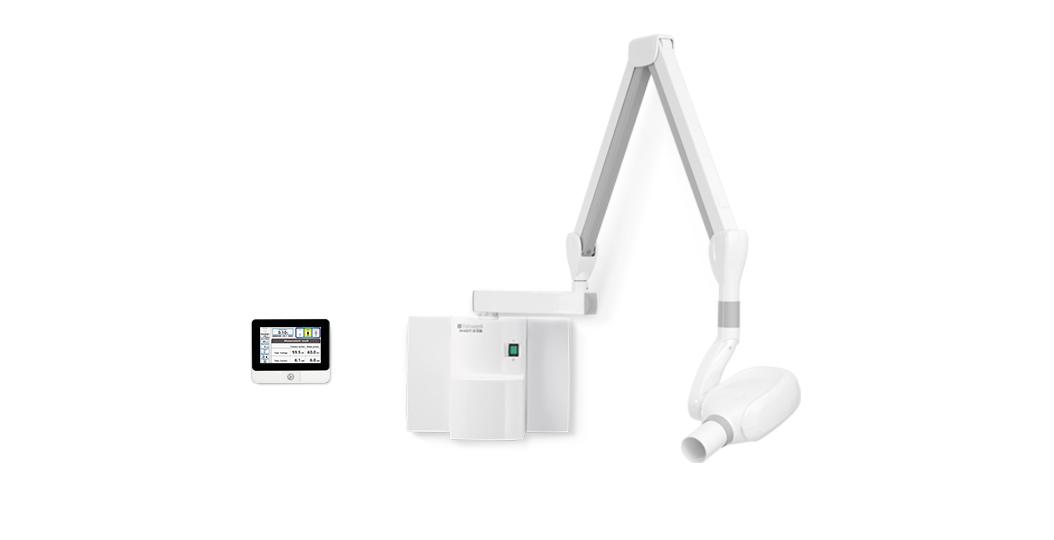

Belmont Phot X II

Product number: XXX

Belmont Phot X II is an extremely reliable, DC Intra oral x-ray. A variety of mounting options are available which makes it an ideal solution for any surgery set up.

Read more
Request a costing Download PDF brochure

Phot-X II DC X-Ray Unit is very user-friendly and simple to operate safely. Radiographer can use the adult/adolescent/child presets or manually override these settings for more challenging exposures.

The well-reputed balance-arm provides excellent stability and reach with zero-drift – assisting with providing the sharpest possible image. Ideal for digital imaging with safety-conscious exposures as low as 0.01 seconds. Phot-X II is compatible with all digital systems and film types, and switches between digital and film at the push of a button. The Radiographer has greater control over the program and over-exposure error is easily avoided with an expansive range of exposure settings (0.01 to 3.2 seconds).

  • Compact control panel with smooth, single piece membrane for easy cleaning
  • Illuminated ON/OFF switch
  • Scissor arm (various primary lengths available)
  • Head and scissor arm fold flat to the wall
  • Angle indictor
  • Compact, lightweight (4 kg) tube head
  • Excellent stability and reach with zero drift
  • Tube voltage 70 kV
  • Tube current 4mA or 7mA
  • Focal spot 0.7mm
  • Exposure time 0.02 to 3.2 seconds
  • Cone length 204mm
  • 80cm primary arm, wall plate, scissor-type arm (max. reach 185cm)
  • Digital time display
  • Digital imaging compatible (min. exposure 0.02 sec)
  • Manual override for total flexibility
  • Touch control for 2 film settings & digital imaging
  • Lockable touch pad control

  • 80cm primary arm supplied as standard:
  • 30cm or 100cm options are available
