X-Mind AC
X-Mind DC

Satelec X-Mind AC/DC

Product number: XXX

X-mind is available in AC or DC format, both with constant voltage and intensity enabling a short exposure time and compliant with current guidelines and standards for digital compatibility.

Read more
Request a costing Download PDF brochure

X-Mind, Instinct for perfection…

The new X-Mind AC generator is fitted with a Toshiba DG-073B mono phased auto rectifier tube. It generates a high 70kV voltage with an ideal intensity of 8mA. Concentrated, high density radiation in a very small diameter focal spot (0.7mm) for greater accuracy. Supplied with a long cone as standard, the generator is perfectly suited to the parallel technique (a short cone* and a rectangular cone are available as options).

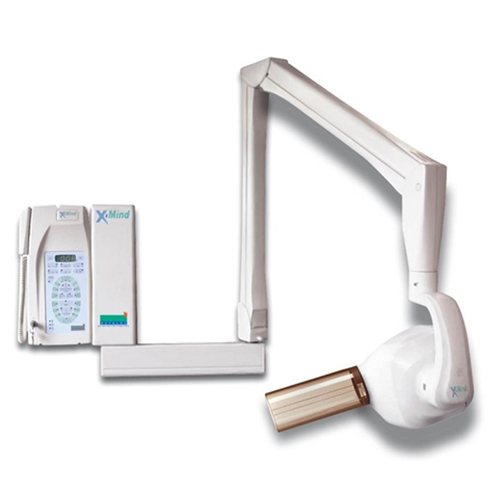

The new X-Mind DC generator is fitted with a Toshiba DG-073B-DC double anode tungsten tube (intensity of 4mA and 8mA), it generates a constant voltage of 60kV or 70kV. It operates at high frequencies and constant potential which enables very high quality radiation to be emitted, whatever the conditions of use.

  • The X-MIND AC® and DC® generators are renowned for their reliability along with their consistent performance.

  • Very high quality

  • Better protection due to a high focus-to-skin distance

  • Two X-MIND AC and/or DC generators can be controlled by a single timer

  • Programmable timer

  • Rotation at 395° around the vertical axis

AC Technical Specification

  • Classification: Electro medical equipment, Class 1 type B

  • Supply voltage: 220/230/240V

  • Power absorption at 220V: 0.8kVA

  • High voltage: 70kV

  • Anode current: 8mA

  • Focal spot: 0.7mm

  • Total filtration: Equivalent to 2mm Al at 70kV

  • Tube inherent filtration: Equivalent to 0.8mm Al at 70kV

  • Timer: Exposure time can be set from 0.08 to 3.2 seconds

  • Total weight: 28kg (weight of the head: 9kg)

DC Specification

  • Classification: Electro medical equipment, Class 1 type B

  • Supply voltage: 230V~ - monophased 50/60Hz

  • Power absorption at 230V: 1.4kVA

  • High voltage: 60-70kV

  • Anode current: 4-8mA Focal spot: 0.7mm

  • Total filtration: Equivalent to 2mm Al at 70kV

  • Tube inherent filtration: Equivalent to 0.8mm Al at 70kV

  • Timer: Exposure time can be set from 0.02 to 3.2 seconds

  • Total weight: 25kg (weight of the head: 5.5kg)
